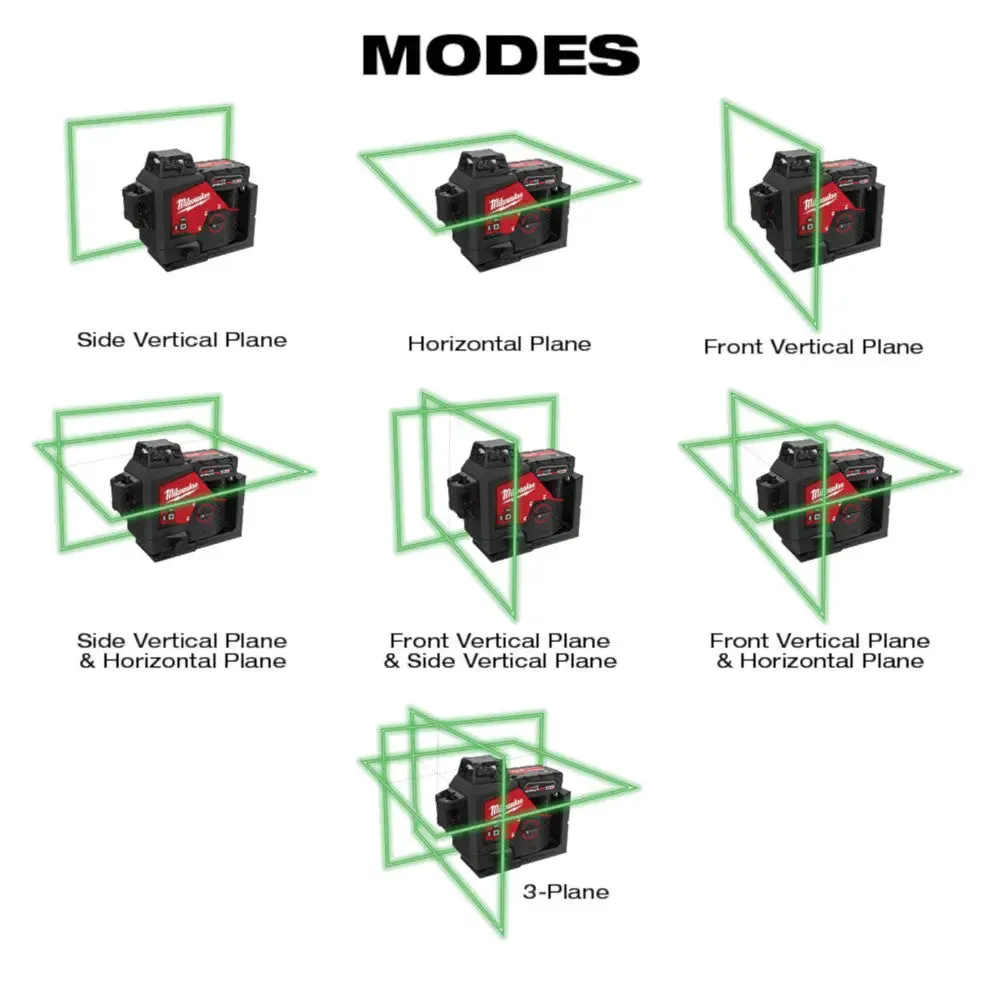

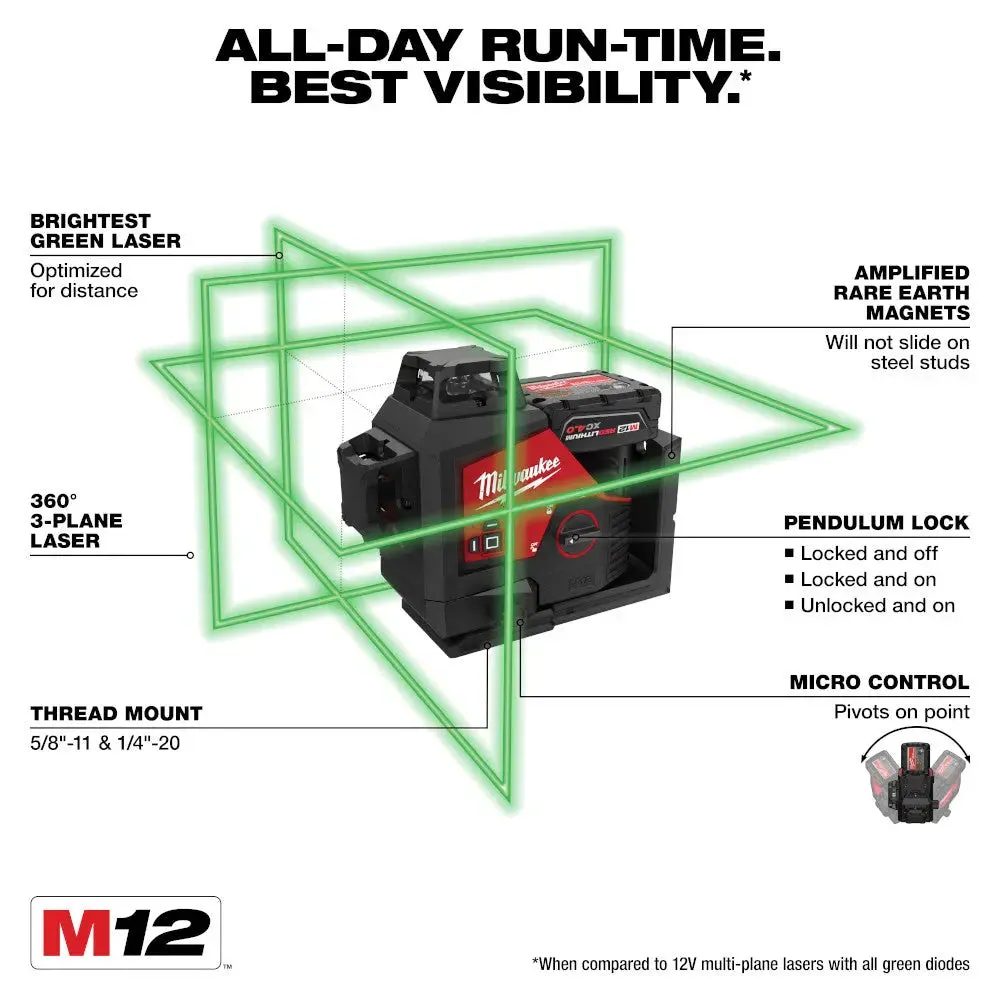

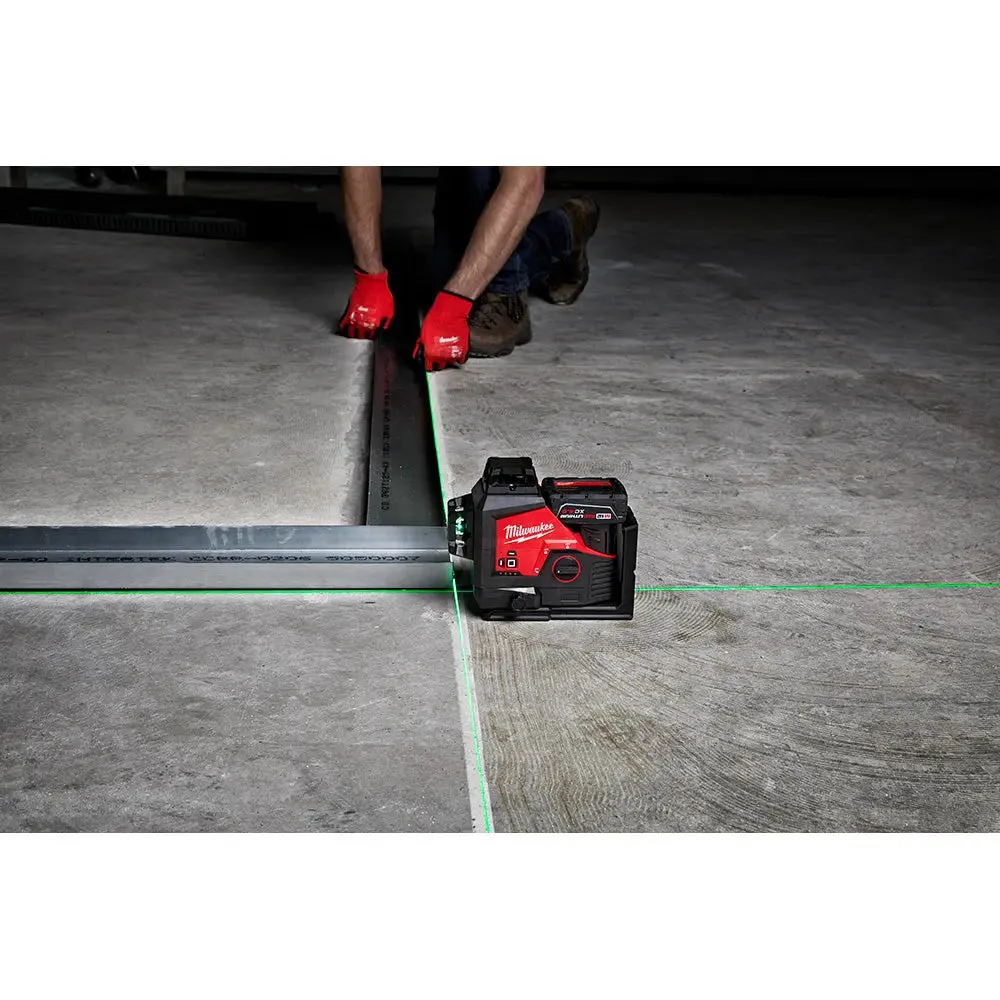

The MILWAUKEE® M12™ Green 360° 3 Plane Laser Kit provides all day runtime and best visibility in its class. Get 15 hours of continuous runtime when paired with an M12™ REDLITHIUM™ 4.0 XC Battery for ultimate productivity. The high-intensity green laser offers superior visibility up to 250' (diameter) for long-range applications. The three 360° planes include horizontal and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing to easily layout large spaces with one tool. The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment. The amplified rare earth magnets provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As a part of the industry-leading M12™ System, this 360° laser level is compatible with all M12™ Batteries.
Features
- All Day Runtime - 15 Hours

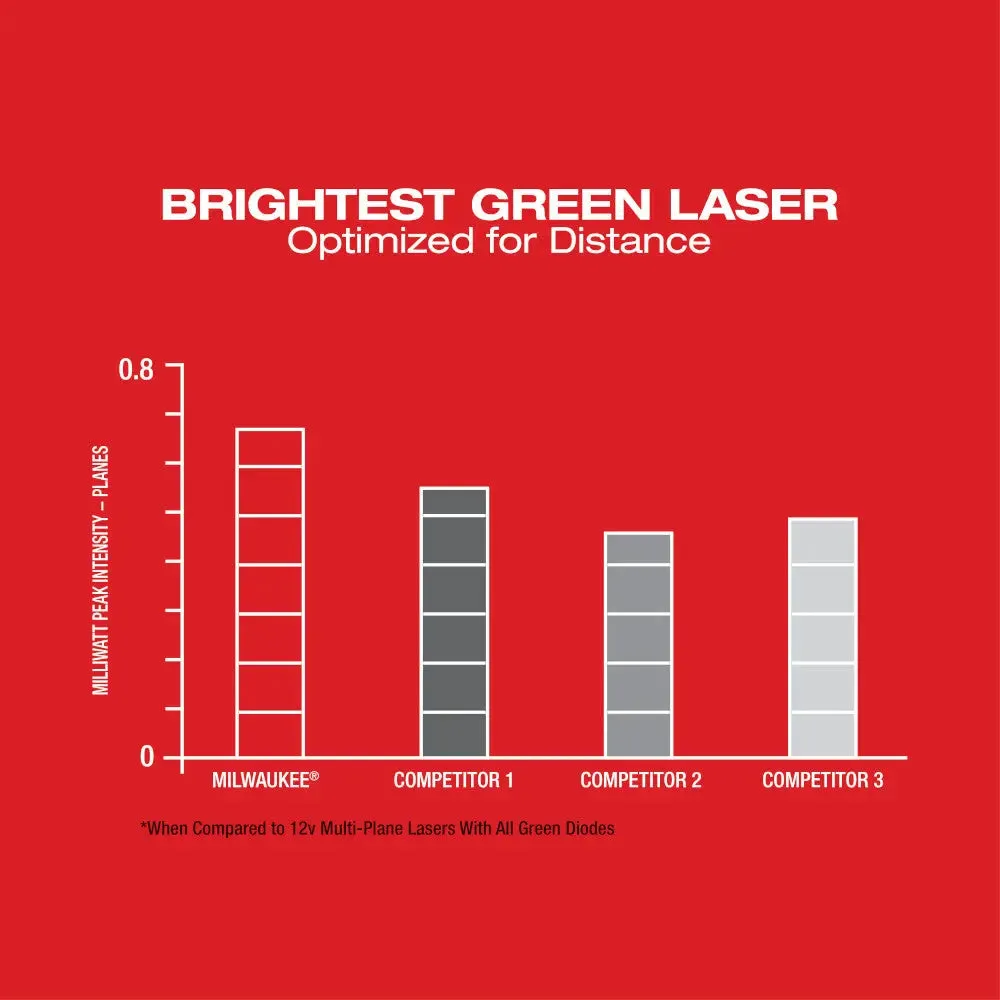

- Brightest Green Laser Optimized for Distance
- Micro Control - Pivots on Point
- 125 ft. Working Range
- 165 ft. Range with Detector
- Accuracy: /- 1/8" @ 33 ft
- Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
- Self Leveling: Plus/Minus 4-Degrees Tilt
- IP54 Rated: Water and Dust Resistant
- 1m Impact Resistance
- 1/4-20 & 5/8-11 Thread Mount
- 3 Year Tool Warranty - 3 Year Battery Warranty

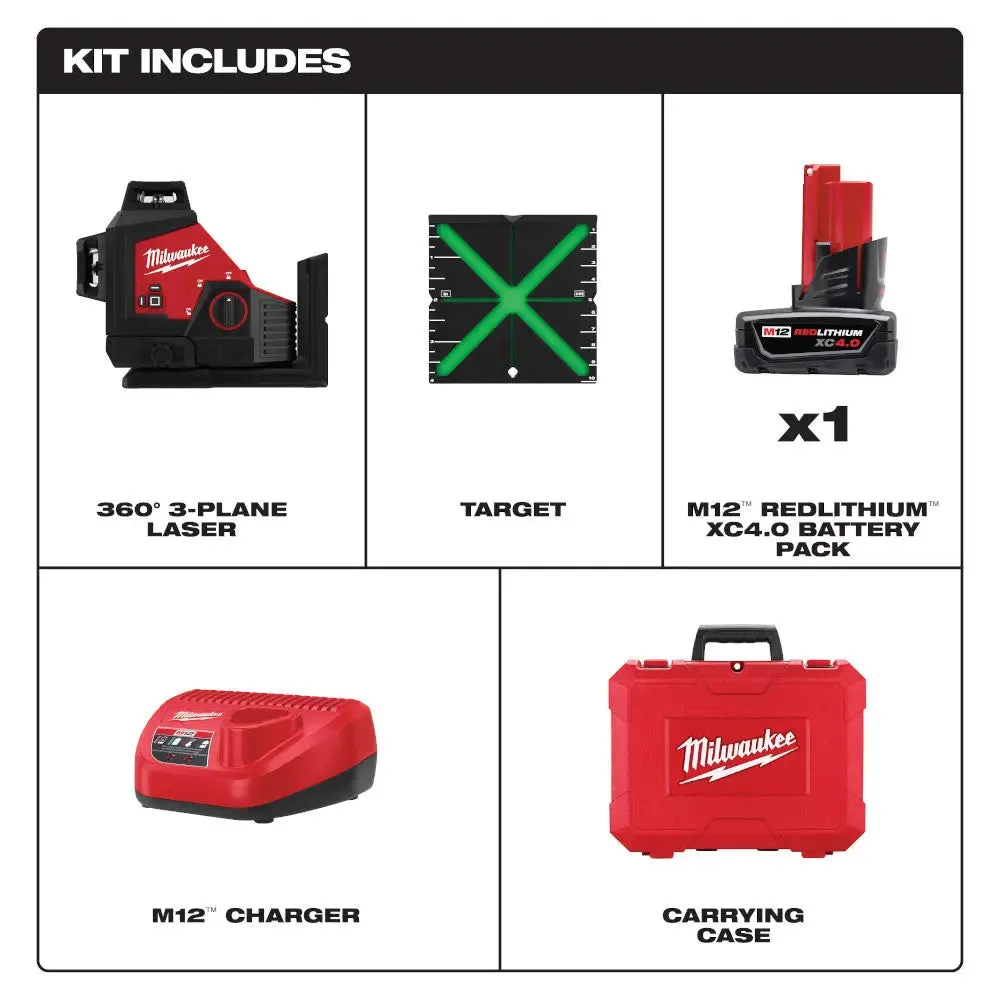

Includes

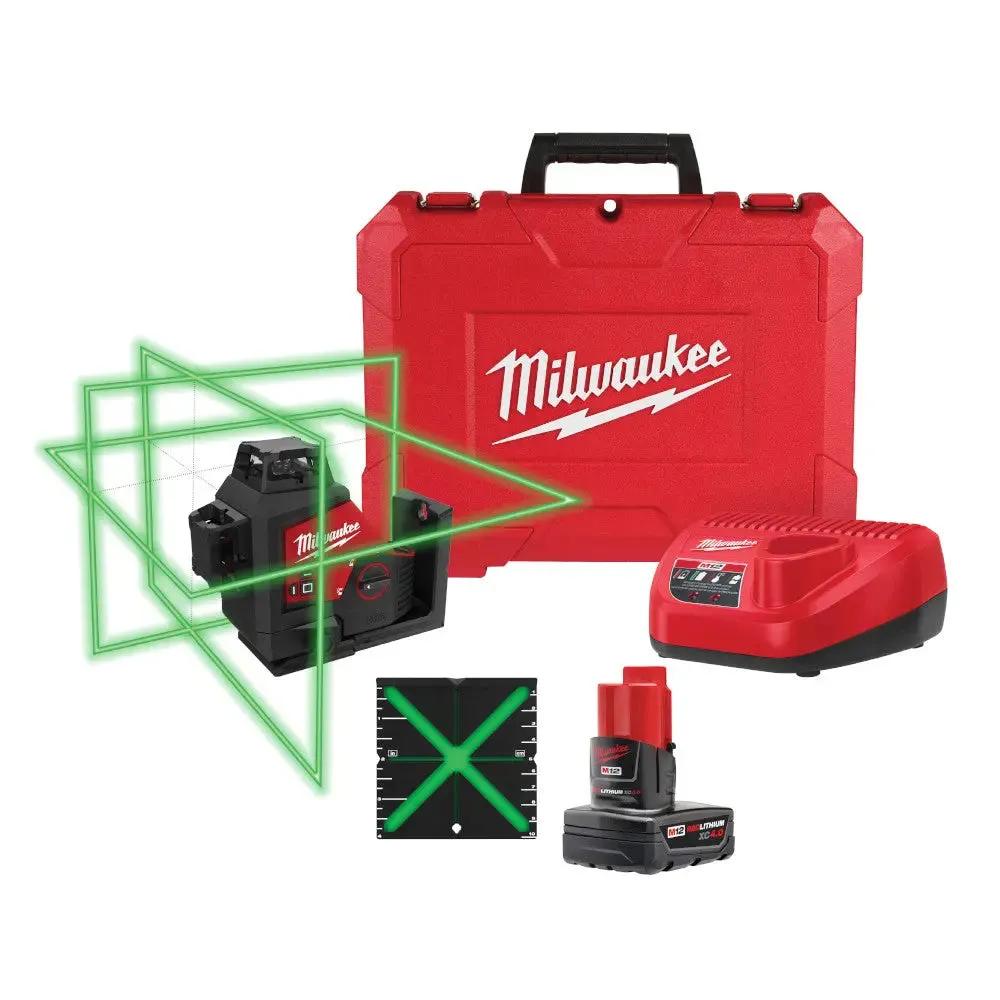

(1) 3632-20 M12 Green 360° 3 Plane Laser; (1) 48-11-2440 M12 4.0Ah XC Battery; (1) 48-59-2401 M12 Charger; (1) 48-35-1111 Laser Target; (1) Carrying Case
Warranty
3 Years (Tool), 3 Years (Battery)

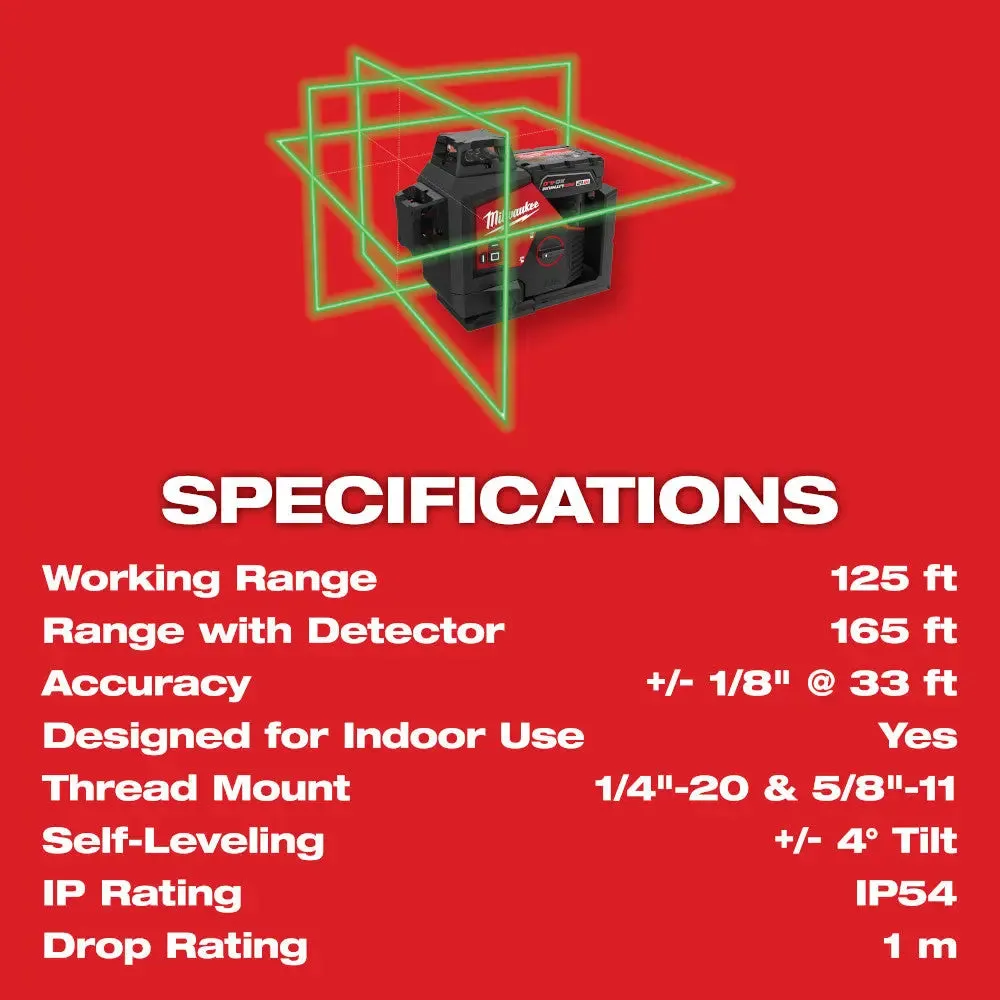

Specifications
| Plumb Up: | Yes |
| Projects Beam 360 degrees: | Yes |
| Auto Leveling Range: | /- 4° |
| Laser Projection: | Horizontal and Vertical |
| Batteries Included: | Yes |
| Battery Voltage *: | 12 |
| Battery Size: | 12 Volt |
| Beam Type: | Green 360° 3 Plane |
| Tripod Mount Dimensions: | 1/4-20, 5/8-11 |
| Accuracy: | /- 1/8" @ 33' |
| Range Without Detector (ft): | 125 |
| Laser Level Type: | Plane |
| Plumb Down: | Yes |
| Case Included: | Yes |
| Color Finish: | Red |
| Laser Output: | ≤8mW |
| Number of Measurements: | 3 |
| Laser Wavelength: | 520nm /- 10nm |
| Self Leveling: | Yes |
| Visual/Audible Indicators: | Yes |
| LED Display: | Yes |
| Automatic Operation: | Yes |
| Laser Class: | 2 |
| Base Type: | Magnetic |
| Number of Batteries Required: | 1 |
| Range With Detector (ft): | 165 |
| Mount Options: | Magnetic, Screw/Nail Hole, 1/4-20 & 5/8-11 Tripod |
| Self Leveling Range Maximum: | /- 4 Degrees |
| Battery Quantity and Size: | (1) Fits all Milwaukee® M12™ Batteries |
| Laser Beam Color: | Green |
| Mounting Method: | Wall or Tripod |
| Maximum Beam Distance: | 125' Radius |
| Number of Lines: | 3 |
| Thread Size *: | 1/4-20, 5/8-11 |
| Interior Range: | 125' Radius |
| Number of Beams: | 3 |
| Laser Display Type: | Shelf |
| Case Material: | Plastic |
| Indoor Outdoor: | Indoor |
| Material *: | Glass Filled Nylon |
| Material Application: | Plumbing; Alignment; Leveling |
| Laser Style: | Self-Leveling |
| Leveling Type: | Pendulum Self-Leveling |
| Laser Usage Environment: | Interior |
| Indoor/Outdoor Use: | Indoor |
| Type: | Laser Level |
